P-DUKE Technology(台湾)は、広入力範囲、高効率、高動作温度、内蔵EMIクラスA / Bフィルタ、高信頼性などを備えた、3〜300Wのウォールマウント/ DINレールタイプのDC / DCコンバータを提供します。

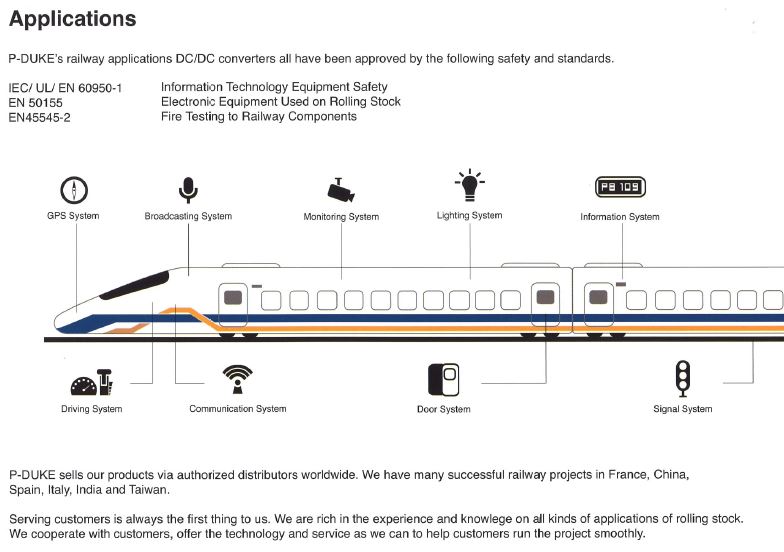

鉄道、情報通信、IT等のアプリケーションのカスタマイズサービスを満たすために、UL / EN / IEC 60950-1、62368-1、EN50155およびその他の関連する安全認証を取得しました。
鉄道向け ワイド入力 DC/DCコンバーター（3-300W）
| Series | Output Power |
Input Range (VDC) |
Output Voltage (VDC) |
Isolation Voltage | Application | Descriptions | |
|---|---|---|---|---|---|---|---|
| NEW | RDL03W | 3W | 9~36, 18~75, 43~160 | 3.3, 5, 9, 12, 15, 24, ±12, ±15, ±5 |
3000VDC | Railway, Industry |
SIP8
|
| NEW | RDL06W | 6W | 9~36, 18~75, 43~160 | 3.3, 5, 9, 12, 15, 24, ±12, ±15, ±5 |
3000VDC | Railway, Industry |
SIP8
|
| NEW | QAE40U | 40W | 9~75, 14~160 | 5, 12, 15, 24, 28, 48, 53 |
3000 VAC | Railway |
Quarter Brick
|
| NEW | QAE60U | 60W | 9~75, 16~160 | 5, 12, 15, 24, 28, 48, 53 |
2250 VDC | Railway |
Quater Brick
|
| NEW | RCD15W | 15W | 9~36, 18~75, 36~160 | 3.3, 5, 12, 15, 24, ±12, ±15, ±24, ±5 |
3000VDC | Railway |
1 x 1 x 0.4 inches
|
| NEW | WAF300W | 300W | 18~75, 43~160 | 12, 15, 24, 28, 48 |
3000VAC | Railway |
4x6x1.52 inch
|
| FKC08W | 8W | 9~36, 18~75, 43~160 | 3.3, 5, 12, 15, ±12, ±15, ±5 |
1600 VDC | Railway |
1.25 X 0.80 X 0.40 INCH; DIP24
|
|
| RED20W | 20W | 9~36, 18~75, 43~160 | 3.3, 5, 12, 15, ±12, ±15 |
2250 VDC | Railway |
2.00 X 1.00 X 0.40 INCH
|
|
| URED20W | 20W | 9~36, 18~75, 43~160 | 3.3, 5, 12, 15, ±12, ±15 |
2250 VDC | Railway |
4.00 x 2.25 x 0.75 INCH; Built-in EMI Filter
|
|
| FED40W | 40W | 9~36, 18~75, 43~160 | 3.3, 5, 12, 15, 24, ±12, ±15, ±24 |
1600 VDC, 3000 VDC | Railway |
2.00 X 1.00 X 0.40 INCH
|
|
| UFED40W | 40W | 9.5~36, 18~75, 43~160 | 3.3, 5, 12, 15, 24, ±12, ±15, ±24 |
1600 VDC, 3000 VDC | Railway |
4.00 x 2.25 x 0.75 INCH; Built-in EMI Filter
|
|
| HAE75W | 75W | 9~36, 18~75, 43~160 | 3.3, 5, 12, 15, 24, 28, 48 |
2250 VDC, 3000 VAC | Railway |
Half Brick
|
|
| HAE100W | 100W | 8.5~36, 9~36, 16.5~75, 43~160 | 3.3, 5, 12, 15, 24, 28, 48 |
2250 VDC, 3000 VAC | Railway |
Half Brick
|
|
| QAE100W | 108W | 8.5~36, 16.5~75, 40~160 | 3.3, 5, 12, 15, 24, 30, 48 |
2250 VDC | Railway |
Quater Brick
|
|
| QAE150W | 150W | 8.5~36, 16.5~75, 40~160 | 3.3, 5, 12, 15, 24, 30, 48 |
2250 VDC | Railway |
Quater Brick
|
|
| WAD150W / WAF150W | 150W |
9~36,18~75, 43~160 |
2250 VDC | Railway |
3.86X2.560X0.67 INCH; 3.86X2.067X0.67 INCH
|
||
| HAE150W | 182W | 8.5~36, 9~36, 16.5~75, 43~160 | 3.3, 5, 12, 15, 24, 28, 48 |
2250 VDC, 3000 VAC | Railway |
Half Brick
|
|
| HAE200W | 255W | 8.5~36, 9~36, 16.5~75, 43~160 | 3.3, 5, 12, 15, 24, 28, 48 |
2250 VDC, 3000 VAC | Railway |
Half Brick
|
